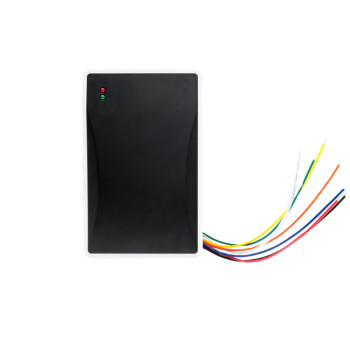

UHF RFID Reader| Yanzeo SR20 860～960MHz Access Control UHF High Performance Integrated RFID Reader
- group name
- Desktop RFID Write Readers
- Min Order
- 1 piece
- brand name
- Yanzeo Pro RFID & BarCode Solutions
- model
- Yanzeo SR20
- Nearest port for product export
- Guangzhou, Shenzhen, ShangHai
- Delivery clauses under the trade mode
- FOB
- Acceptable payment methods
- T/T, PayPal, Cash
- update time
- Fri, 22 Nov 2024 13:46:36 GMT
Paramtents
System Parameter： ARM7+UHF model
Read Range： >2m
Group of reading performance： >50pcs
Support Protocol： Fixed Frequency Band and FHSS Software Programmabl
Operating Mode： 0-30dBm（Adjustable）
Output Power： 2dBi circular polarize antenna （Integrated）
Antenna： Fixed Frequency Band and FHSS Software Programmabl
Communication Port： RS485、Wiegand26、Wiegand34
Power： +12V
Power Consumption： < 1W
Operation： －20℃ ～ +70℃（Customized）
Humidity： 20％ ～ 95％（without condensation）
Storage： －40℃ ～ +125℃
Packging & Delivery
- 20cm x20cm x20cm
-
Min Order1 piece
Briefing
Detailed
Yanzeo SR20 is a High Performance UHF integrated reader for long range operation. The reader operates in frequency range of 860MHz～960MHz design to read ISO18000‐6C and ISO18000‐6B protocol ID Tag.The reader can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.
behind
Accessories
packaging
Long-distance Integrated Reader – 860～960MHz
Mainly used in business,payment,health care,tobacco,some industries,etc.
Technical Specification
|
ITEMS DESCRIPTION |
||
Model： | Yanzeo SR20 | |
System Parameter： | ARM7+UHF model | |
Operating Frequency： | International（920～925MHz） | |
USA（902～928MHz） | ||
EUR(865～868MHz) | ||
Others（Customized Tag） | ||
Read Range： | >2m | |
Group of reading performance： | >50pcs | |
Support Protocol： | Fixed Frequency Band and FHSS Software Programmable； | |
Frequency Hopping Mode： | Master‐Slave Mode（Online Mode）、Time Scheduled Modes、Trigger Mode | |
Operating Mode： | 0-30dBm（Adjustable） | |
Output Power： | 2dBi circular polarize antenna （Integrated） | |
Antenna： | Fixed Frequency Band and FHSS Software Programmable； | |
Communication Port： | RS485、Wiegand26、Wiegand34 | |
Power： | +12V | |
|
Prompt： |
Beep or LED light flash |
|
|
Beep or LED light flash |
< 1W |
|
OPERATING ENVIRONMENT | ||
|
Operation： |
－20℃ ～ +70℃（Customized） |
|
Humidity： | 20％ ～ 95％（without condensation） | |
Storage： | －40℃ ～ +125℃ | |
PHYSICAL PARAMETER | ||
Dimension： | 122x78x25MM | |
Net Weight： | 110G | |
Weight： | 210G | |
ACCESSORES | ||
Software Pack (Optional)： | API Software Development Kits complete with VB,C#Sample Program | |
Long-distance Integrated Reader – 860～960MHz
Specification
|
ITEM |
DESCRIPTION |
RED | +12V |
BLACK | GND- |
|
BLUE |
TRIGGER |
|
YELLOW |
RS485 R- |
ORANGE | RS485 R+ |
GREEN | DATD0 |
WHITE | DATD1 |
