Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)

Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)
Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)
group name
Desktop RFID Write Readers
Min Order
1 piece
brand name
Yanzeo Pro RFID & BarCode Solutions
model
Yanzeo SR200
Nearest port for product export
Guangzhou, Shenzhen, ShangHai
Delivery clauses under the trade mode
FOB
Acceptable payment methods
T/T, PayPal, Cash
update time
Fri, 22 Nov 2024 14:14:14 GMT

Paramtents

  • Working frequency: 902MHz – 928MHz

  • Agreement: EPC global UHF Class 1 Gen 2

  • Antenna parameters: 3dBi circular polarization antenna (built-in)

  • Output DBM: 0-30 dBm (software adjustable)

  • Operating mode: Active mode Answer mode

  • Operating Voltage DC +5V

  • Stand current <80mA, the working time of continuous card reading

  • Working current 180mA @ 3.5V (26 dBm Output,25°C)。

  • Communication Interface USB virtual keyboard

  • Operating -20℃~70℃ temperature:

  • Storage -20℃~85℃ temperature:

  • Size: 125mm×65mm×12mm

  • weight: 400g

Packging & Delivery

  • 20cm x10cm x10cm
  • Min Order1 piece

Briefing

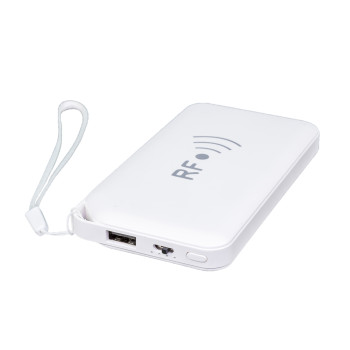

SR200 is a small desktop reader writer. RF channel is based on M100 UHF RFID chip., compatible with ISO 18000-6c standard.

Detailed

Yanzeo SR200 UHF RFID Reader Writer Wireless Portabal Bluetooth (M100)

Yanzeo SR200 Wireless Portabal Bluetooth Reader Writer(M100)

SR200 is a small desktop reader writer. Its RF channel is based on M100 UHF RFID chip., compatible with ISO 18000-6c standard. Its working frequency is 902mhz ~ 928mhz. It is a small integrated reader for short distance identification or background card issuing management. With small size, it’s easy to carry. It is suitable for personnel access control, image document management, and background RFID tag reading, writing, and authorization, formatting, etc



You can use it in:

Logistics and warehousing management: the article flow and warehousing management, as well as the flow management of mail, parcels, luggage.

Intelligent parking management: parking management and charging automation;

Production line management: identification of fixed-point production processes

Product anti-counterfeiting detection: use the protection function of the memory in the label to identify the authenticity of the product

Besides, it is very popular in the management system of clubs, libraries, students’ status, attendance, dining, pools.



Features:

Small in size, it’s suitable for indoor desktop placement;

The RF channel is based on the M100 UHF RFID chip;

The label reading distance is adjusted from 10cm to 2m, which adapts to different circumstances .

The industry's higher successful rate of label writing.

Multi-label identification capability: >50 labels.

Label identification speed: >50 sheets/sec.

YANZEO SR200 Technical Parameters of Passive Portable Bluetooth Reader

Features

Working frequency:

902MHz – 928MHz

865MHz – 868MHz (customizable)

Agreement:

EPC global UHF Class 1 Gen 2

Frequency  method:

Broad spectrum frequency hopping (FHSS) or fixed frequency, which can be set by software;

Antenna parameters:

3dBi circular polarization antenna (built-in)

Output DBM: 0-30 dBm (software adjustable)

Reading distance:

Maximum reading distance of tags: 2m (related to factors such as transmit power, antenna type, tag type and application environment)

Maximum distance to write tags: 0.5m (depending on factors such as transmit power, antenna type, tag type and application environment)

Operating mode:

Active mode

Answer mode

Electrical parameters

Operating Voltage

DC +5V

Stand current

<80mA, the working time of continuous card reading is about 24 hours.

Working current

180mA @ 3.5V (26 dBm Output,25°C)。

110mA @ 3.5V (18 dBm Output,25°C)。

External interface

Communication Interface:

USB virtual keyboard

USB virtual serial port (need to be customized)

Bluetooth 4.1 communication

working environment

Operation:

20℃ ~ +70℃(Customized)

Humidity:

20% ~ 85%(without condensation)

PHYSICAL PARAMETER

Size:

125mm×65mm×12mm

weight:

400g

ACCESSORES

Power Adapter:

USB power supply/battery power supply (Bluetooth version comes with 3000MAH battery, USB interface for charging and powering)

Power cable:

Yes

RS-232 signal line:

No

Development kit:

Provide VS, Android SDK, JAVA
