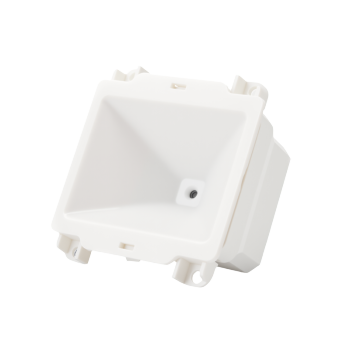

Yanzeo R26 High-Speed 2D Barcode Scan Engine, Embedded Module with USB & RS232 Interface

group name: Embedded scanning module

Min Order: 1 piece

brand name: Yanzeo Pro RFID & BarCode Solutions

Nearest port for product export: Guangzhou, Shenzhen, ShangHai

Delivery clauses under the trade mode: FOB

Acceptable payment methods: T/T, PayPal, Cash

update time: Sat, 19 Jul 2025 17:05:33 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

R26 is a high-performance embedded 2D module with high-performance decoding chip. It can decode a variety of 1D and 2D codes, and can also scan payment barcodes such as WeChat and Alipay, which can meet the application needs of various occasions. If you are looking for a high-quality embedded 2D module, R26 will be a good choice.

Detailed

Performance parameters

Model:	R26	Input voltage:	DC 3.3V ± 0.25V
Resolution:	640×480 CMOS	Power:	0.7W (operating); 0.01W (standby)
Scanning mode:	Sensing Mode	Current:	Less than 230 mA (working); 5 mA (standby)
Scanning angle:	Horizontal 72°, vertical 57°, rotation 360°	Casing material:	PC+ABS
Accuracy:	≥4mil	Temperature:	0℃ to 50℃ (operating); -40℃ to 60℃ (storage)
System interface:	USB keyboard; USB virtual serial port; RS-232 serial port	Humidity:	5% to 95% (non-condensing)
Appearance size:	65mmL×61mmW×32mmH	Weight:	20g
Decoding capability:	2D：QR Code, Data Matrix (DM）, PDF417, Han Xin, Micro PDF417, Micro QRCode, MaxiCode, Aztec Code, Code16K, etc 1D：EAN13, EAN 8, UPC-A, UPC-E0, UPC-E1, Code128, Code39, Code93, Interleaved 2 of 5, Industrial 25, Matrix 2 of 5, Code11, CodeBar, MSI, RSS-14, RSS- Ltd, RSS- Exp, Standard 2 of 5, Plessey, ChinaPost 25, GS1 Composite, etc.
