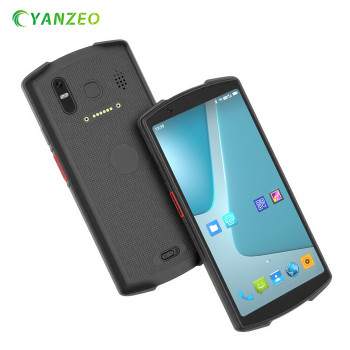

Yanzeo SC620 5G Handheld Terminal PDA Biometric Fingerprint Reader Honeywell N6703 2D Barcode Scanner for WMS Order Picking

group name: Handheld RFID Readers

Min Order: 1 piece

brand name: Yanzeo Pro RFID & BarCode Solutions

model: SC620

Nearest port for product export: Guangzhou, Shenzhen, ShangHai

Delivery clauses under the trade mode: FOB

Acceptable payment methods: T/T, PayPal, Cash

update time: Thu, 03 Sep 2026 14:04:57 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

The Yanzeo SC620 is a next-generation 5G industrial handheld terminal designed to outperform traditional bulky enterprise devices. It combines a massive 5.93-inch high-definition display with an ultra-slim 12.3mm ergonomic profile. Powered by a robust Cortex-A76/A55 Octa-core processor and an upgraded 6GB RAM + 128GB storage configuration, it delivers lightning-fast performance on Android 13.

Built for tough environments with an IP66 rating, the SC620 can be customized with premium Honeywell 2D scanning engines, offering flagship-level data capture at an unmatched value.

Detailed

Product Overview

Empower your workforce with the Yanzeo SC620 5G Smart Handheld Terminal. Engineered for modern logistics, retail, and field service operations, the SC620 seamlessly bridges the gap between consumer smartphone aesthetics and enterprise-grade durability. It leverages high-speed 5G connectivity and offers versatile optional configurations, including high-frequency NFC and top-tier barcode scanning modules, to meet the exact demands of your enterprise workflows.

Key Features

Flagship Processing & Memory
Runs on modern Android 13 with a 64-bit Cortex-A76/A55 Octa-core processor. Comes standard with 6GB RAM + 128GB ROM, effortlessly handling resource-intensive WMS/ERP applications without latency.
Expansive Display in an Ultra-Slim Body
Features a large 5.93-inch display (720x1440) with >450cd/m2 brightness in an incredibly sleek body measuring just 12.3mm thick, significantly reducing operator fatigue.
Enterprise-Grade Ruggedness
Certified with an IP66 protection rating against dust and water jets, and engineered to withstand multiple 1.2-meter drops onto concrete.
Flexible Modular Customization
Supports high-performance optional modules, including Honeywell 2D barcode scan engines (N6703/N6602-W2/N6803) and 13.56MHz NFC for seamless operational scalability.

Technical Specifications

Category	Specification Details
Brand & Model	Yanzeo SC620
Operating System	Android 13
Google Services	Full GMS (Google Mobile Services)
Processor	Cortex-A76/A55 Octa-Core 64-bit
Memory & Storage	6GB RAM + 128GB ROM
Display	5.93-inch, 720×1440 Resolution, >450 cd/m² Brightness
Dimensions	164.5mm × 79.4mm × 12.3mm
Cellular Network	5G Full Netcom
Wi-Fi	Dual-band 2.4GHz / 5GHz (IEEE 802.11 a/b/g/n/ac)
Bluetooth	Bluetooth 5.0 (Transmission Range: 5–10m)
Positioning (GNSS)	GPS, Galileo, Glonass, Beidou
Cameras	Rear: 13MP High-Definition Camera Front: 5MP Color Camera
Audio & Keys	Speaker >88dB (Test distance: 10cm) Silicone Keys: Power Key, Volume +/-, Scan Key × 2
Battery	3.8V 4200mAh Removable Rechargeable Polymer Battery
Interfaces & Slots	Type-C USB × 1 (OTG Supported), Nano SIM Slot
Protection Rating	IP66 Sealing
Drop Specification	Multiple 1.2m drops to concrete
Operating Temp	-20°C to 55°C
Storage Temp	-40°C to 70°C
2D Barcode Scanner Engine	Choice of Honeywell Engines: • Honeywell N6703 • Honeywell N6602-W2 • Honeywell N6803
NFC Reader	• Frequency: 13.56MHz • Protocols: ISO14443A/B, ISO15693 • Reading Distance: 2cm – 5cm
