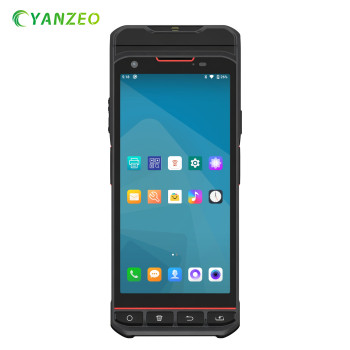

Yanzeo SA510 Android Mobile Terminal with 58mm Honeywell N6703 2D Barcode Scanner for POS Thermal Sticker Printer

group name: Handheld RFID Readers

Min Order: 1 piece

brand name: Yanzeo Pro RFID & BarCode Solutions

model: SA510

Nearest port for product export: Guangzhou, Shenzhen, ShangHai

Delivery clauses under the trade mode: FOB

Acceptable payment methods: T/T, PayPal, Cash

update time: Thu, 03 Sep 2026 14:43:50 GMT

contact supplier

Packging & Delivery

Min Order1 piece

Briefing

All-in-One Design: Integrates an Android PDA and a 58mm thermal sticker printer in one device, eliminating separate Bluetooth printers for instant on-site printing.

Honeywell 2D Scan Engine: Equipped with authentic Honeywell scan heads (N6703/N5703) for rapid, precise decoding of 1D/2D barcodes on paper or screens.

Built-in Sticker Printer: High-speed 70mm/s thermal printing with a 35mm roll capacity, supporting self-adhesive labels and black-mark receipts.

Powerful Hardware: 2.3GHz Octa-Core processor, Android 13/10 OS, up to 4GB+64GB memory, and 256GB Micro SD expansion.

Industrial Connectivity: Dual-band Wi-Fi, 4G LTE, Bluetooth 5.0, NFC, GPS, IP54 sealing, and 1.2m drop resistance.

All-Day Power: 7.6V 2800mAh removable battery (equivalent to 3.8V 5600mAh) offering 350 hours standby.

Detailed

Product Overview

The Yanzeo SA510 is an all-in-one handheld terminal engineered to boost field operations, retail relabeling, and logistics. By unifying an Android mobile computer, an enterprise barcode scanner, and a 58mm thermal label printer into one unit, it removes the hassle of carrying and pairing external Bluetooth printers. Workers can scan, process data, and print stickers on the go.

Basic Specifications

Catalogs	Specification
Product Model	Yanzeo SA510
Product Type	All-in-One Sticker Printing Handheld Terminal / Mobile Computer
Operating System	Android 10.0 / Android 13.0
Processor (CPU)	MT6765X Octa-core 64-bit 2.3GHz High-Performance Processor
RAM + ROM	2GB + 16GB / 4GB + 64GB (Optional)
Expandable Storage	Micro SD (TF) Card slot, supports up to 256GB

Display & Touch Screen

Feature / Parameter	Specification
Display Screen	5.5-inch IPS Color Display
Resolution	720 × 1440 HD
Screen Brightness	> 500 cd/m² (Sunlight Readable)
Touch Panel	Multi-touch Capacitive Touchscreen

Integrated Thermal Printer

Feature / Parameter	Specification
Printer Type	Built-in Direct Thermal Printer (Supports Sticker / Label Printing)
Printing Speed	Up to 70 mm/s
Resolution / Dots	384 dots
Paper Roll Width	58 mm
Max Paper Roll Diameter	35 mm
Supported Paper Types	Self-adhesive sticker labels, Black mark paper

Data Capture / Barcode & RFID

Feature / Parameter	Specification
2D Barcode Engine (Optional)	Honeywell N5703 / N6703 / N6703HD / N6602-W2
1D Barcode Symbologies	UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, Postal Barcodes (USPS Planet/Postnet, Royal Mail, Australian Post, etc.)
2D Barcode Symbologies	PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, HanXin, Composite, RSS, TLC-39, etc.
NFC Reader (Optional)	13.56MHz, ISO14443A/B, ISO15693 protocols; Read/Write distance: 2 cm – 5 cm

Wireless Connectivity & Communication

Feature / Parameter	Specification
WLAN (Wi-Fi)	Dual-band 2.4GHz / 5GHz, compatible with IEEE 802.11 a/b/g/n/ac/d/e/h/i/k/r/v
WWAN (4G Cellular)	2G: GSM (850/900/1800/1900MHz) 3G: WCDMA (850/900/1900/2100MHz) 4G FDD: B1/B3/B4/B7/B8/B12/B20 4G TDD: B38/B39/B40/B41
Bluetooth	Bluetooth 5.0 + BLE (Transmission range: 5 – 10 meters)
GNSS Positioning	GPS, Galileo, GLONASS, BeiDou

Power Supply & Battery

Feature / Parameter	Specification
Battery Capacity	Rechargeable Polymer Battery, 7.6V 2800mAh (Equivalent to 3.8V 5600mAh), Removable
Standby Time	> 350 Hours
Charging Time	3 – 4 Hours (Standard Power Adapter & USB Cable)

Physical & Hardware Features

Feature / Parameter	Specification
Dimensions	179 mm × 74.5 mm × 22.5 mm (Thinnest section) / 49.5 mm (Printer section)
Weight	< 500 g (Varies by device functional configuration)
Card Slots	1 × Micro SIM slot, 1 × Micro SD (TF) slot, 2 × PSAM slots (Optional)
Interfaces	1 × Type-C USB with OTG function support
Physical Buttons	Main: Home, Delete, Back, Confirm Side: Power, Volume +/-, 2 × Scan Trigger Buttons
Audio & Sensors	Loudspeaker (>93dB at 10cm), Microphone, Receiver; Gravity Sensor, Ambient Light Sensor, Proximity Sensor, Vibration Motor

Environmental & Reliability

Feature / Parameter	Specification
Operating Temperature	-20°C to 55°C
Storage Temperature	-40°C to 70°C
Humidity	5% RH - 95% RH (Non-condensing)
Drop & Tumble Standard	Withstands 1.2 m 6-sided drops onto marble; Continuous 0.5 m 6-sided rolling test
Protection Rating	IP54 Sealing Rating
System Languages	Simplified Chinese, Traditional Chinese, English, Korean, Japanese, Malaysian, Singaporean, etc.
Certifications	CE, ROHS, REACH Compliant
